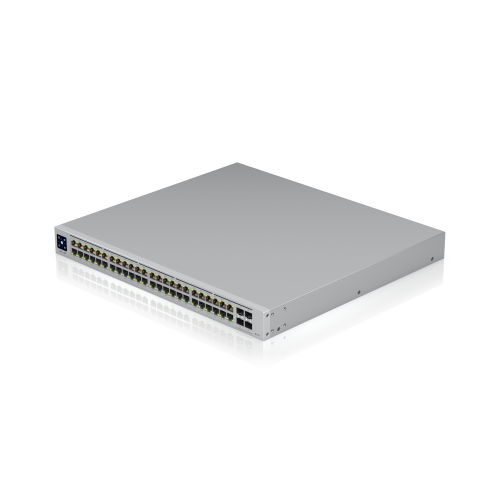

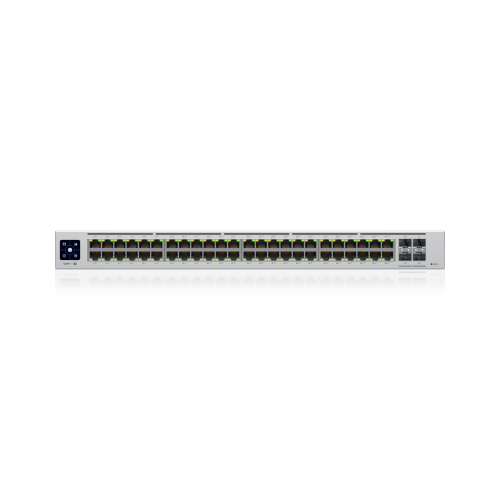

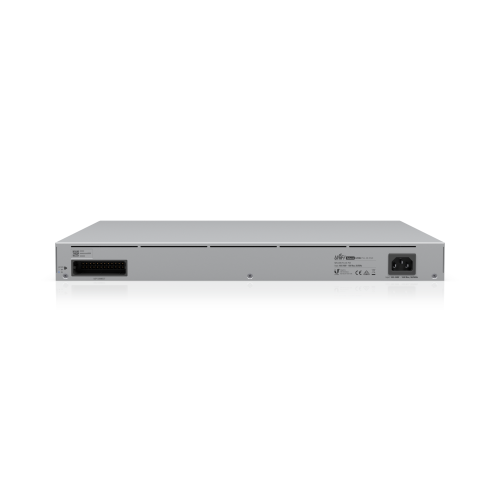

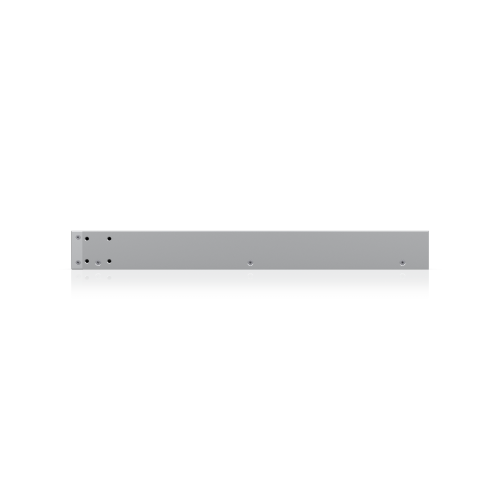

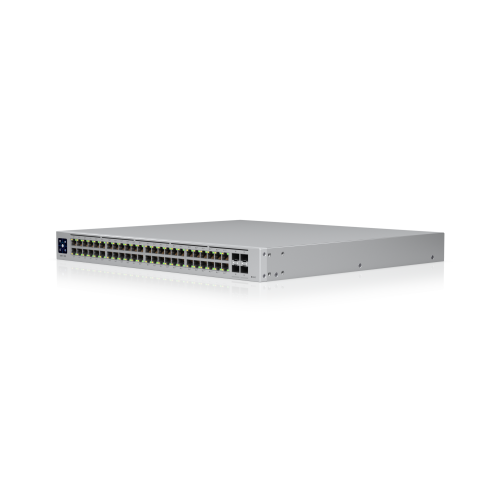

Switch Pro 48 PoE

For HONDA

Switch Pro 48 PoE

A 48-port, Layer 3 PoE switch

Feature

(40) GbE, PoE+ RJ45 ports

(8) GbE, PoE++ RJ45 ports

(4) 10G SFP+ ports

(1) USP RPS DC input for power redundancy 600W total PoE availability

Consultation Hotline
8613710098090

Related Products

USW-16/48-POE

带有无风扇冷却系统的 24 端口第 2 层 PoE 交换机。

Switch Enterprise 8 PoE

8 口二层 PoE 交换机,采用无风扇静音散热

802.3at/bt PoE Gigabit Switches with Layer 3 Features and SFP+

Auto-Sensing IEEE 802.3af/at/bt PoE,SFP+ Ports for 10G Links,Integrated Fans for Near-Silent Cooling,Models: USW-Pro-24-PoE, USW-Pro-48-PoE

Management Capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Mechanical
Dimensions 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
Weight Without Brackets: 6.25 kg (13.78 lb) With Brackets: 6.34 kg (13.98 lb)
Hardware
Networking Interface (48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports
Management Interface Ethernet In-Band
Total Non‑Blocking Throughput 88 Gbps
Switching Capacity 176 Gbps
Forwarding Rate 130.944 Mpps
Power Method Universal Input USP RPS DC Input 100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply AC/DC, Internal, 660W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 60W
LEDs System RJ45 Data Ports SFP+ Data Ports Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 600W
PoE Interfaces Ports 1-40 Ports 41-48 PoE/PoE+ (pins 1, 2+; 3, 6-) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE PoE+ PoE++ 32W 64W
Voltage Range PoE Mode 44-57V
Voltage Range PoE+ Mode 50-57V
