Mechanical
Hardware
Dimensions 131.16 x 27.10 x 134.20 mm (5.16 x 1.07 x 5.28")
Weight 582 g (1.28 lb)
Enclosure material Anodized aluminum
Processor Octa-core Arm
® Cortex
® A53 based chip
eMMC memory 32 GB

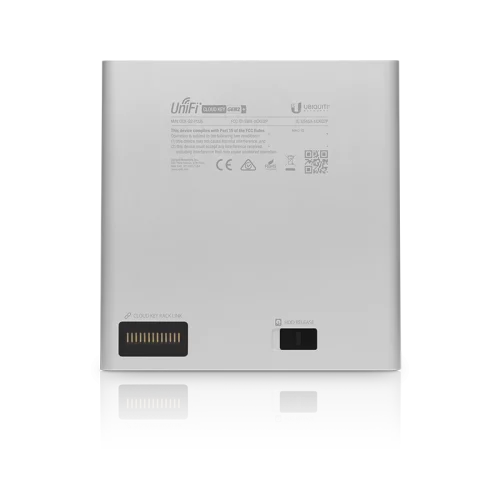

Hard drive capacity 1 TB 2.5" SATA HDD (user-upgradeable*)
*TheCloudKeyGen2Plus only supports harddrives thatcanoperateon5Vpower.Harddrives that requireadditional powerarenot supported.
Device capacity UniFi Protect mode:
Up to 20 G3 cameras
Up to 10 G4 cameras
UniFi SDN + UniFi Protect:
Up to 15 G3 cameras and 50 UniFi devices
Up to 7 G4 cameras
Power method PoE
Quick charge 2.0/3.0 power adapter, 9V DC, 2A
Max. power consumption 12.95W

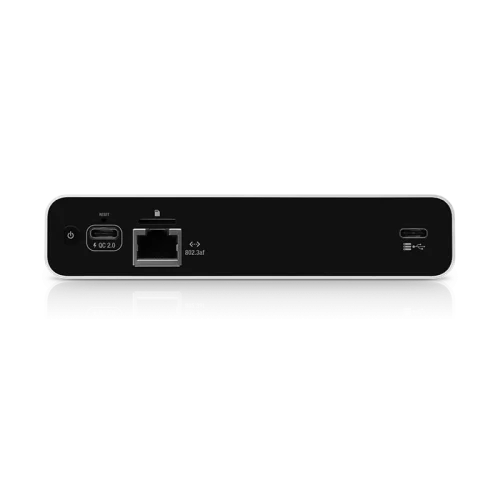

Networking interface (1) GbE RJ45 port
Managementinterface UniFi Protect
Buttons (1) Power
(1) Factory reset
LEDs (1) Power: white/blue
Operating temperature 0 to 35° C (32 to 104° F)
Operating humidity 20 to 80% noncondensing
Certications FCC, CE, IC
